Description
api bass pedal API Select TranZformer CMPAPI Select TranZformer CMP Compressor Pedal The API Select TranZformerCMP incorporates APIs legendary VCA type compressor circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run off standard 9V power supplies, the CMP gives you classic studio quality compression right at your feet. Other features include a buffered bypass in out footswitch, adjustable attack and release times, wet

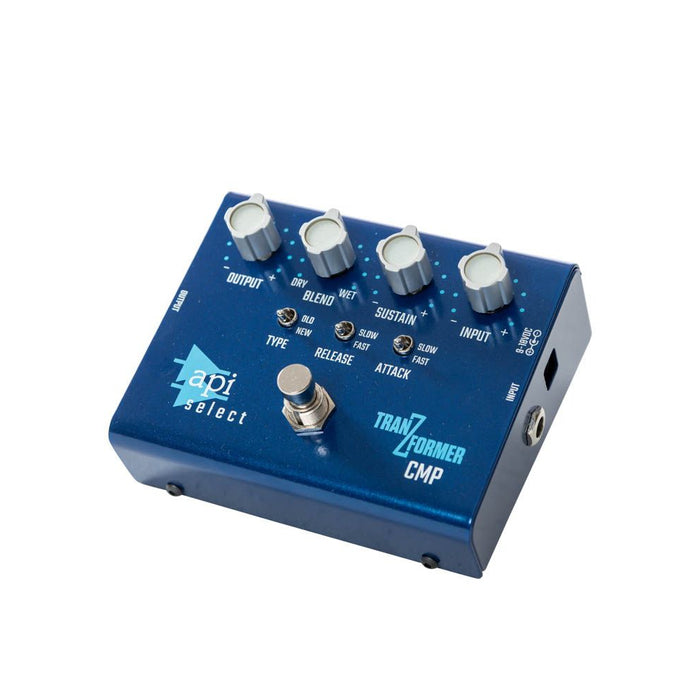

API Select TranZformer CMP - Compressor Pedal
The API Select TranZformer®CMP incorporates API’s legendary VCA-type compressor circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run off standard 9V power supplies, the CMP gives you classic studio-quality compression right at your feet. Other features include a buffered bypass in/out footswitch, adjustable attack and release times, wet/dry blend control, selectable “feedback” and “feedforward” compressor styles, transformer output, and of course the classic API sound.
Features
- Proprietary API 2510 OpAmp
- Signature API output transformer
- Adjustable attack and release times
- Wet/dry blend control
- Selectable feedback/feedforward compressor styles
- Buffered bypass
Specifications
- Input connection: 1/4" Hi-Z unbalanced instrument input
- Input Impedance: 1MΩ
- Bypass: Yes, buffered, 0dB
- Output connections: 1/4" Hi-Z unbalanced output
- Output Impedance: Hi-Z output: Less than 1kΩ
- Input Gain Control: 9dB–30dB, Variable
- Output Level Control: -inf. to 0dB, Variable
- Maximum output level before clipping: + 15dBu (9VDC), +22dBu (18VDC)
- Frequency Response: +0dB, -1dB, 20 - 20kHz
- Compressor:
- Ratio (Sustain): Varies from 1:1 to 20 :1 depending on compressor control setting.
- Attack (switched): FAST (1ms) or SLOW (10ms)
- Release (switched): FAST (300ms) or SLOW (1s)
- TYPE (switched): New (Feed-forward), OLD (Feed-back)
- Power Supply: 9-18VDC @ 100mA
- Size: 4.6” x 3.8” x 3”
- Size (Boxed for Shipping): 6” x 4.5” x 4.5”
- Actual Weight: 1.5 lbs.
- Shipping Weight: 2 lbs.
